Elevated Liquid Containing Structure of 5000m³

Project Description

50m height elevated conical water tanks, capacity 5000m³, with a top diameter of 40m

Structure Description

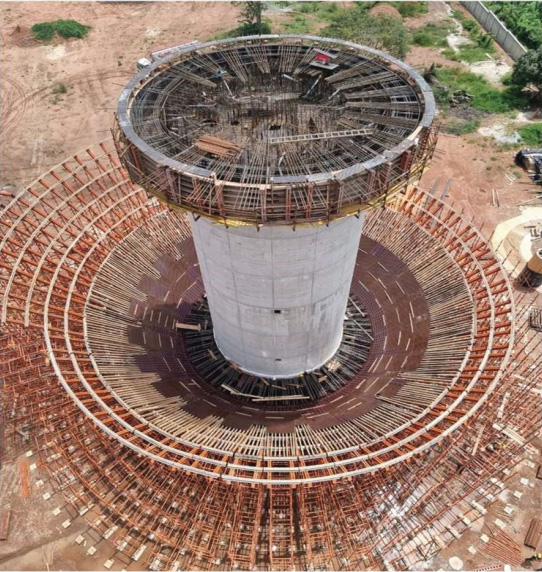

Reinforced concrete thick raft supporting a cylindrical wall on which a conical reinforced concrete tank diameter 40m is constructed. The structure is partially prestressed and precast. The sequence of construction is a major constraint for the structure. The tank is poured on ground and lifted up using steel tendons then prestressed and locked to the stem walls. The tank is covered with a precast dome that is constructed and lifted to place using mobile cranes. The upper dome is of a 40m diameter and laid on a ring beam confining the conical tank walls.

Scope Includes the complete design of the entire structure and the preparation of the related execution drawings and bar bending schedule.

Role and Responsibilities

• Project management, settings and requirements,
• Leading team members,
• Coordination,

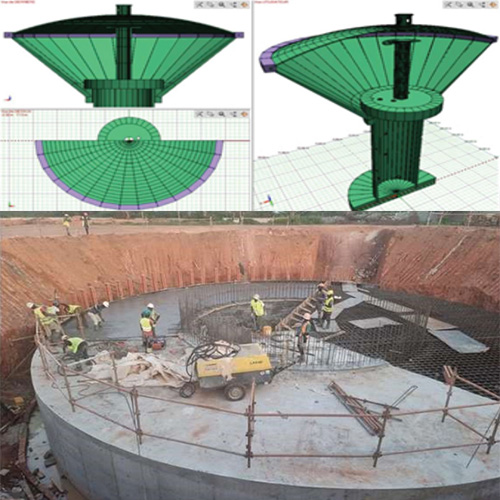

• Constructing design models,
• Phasing the construction,
• Design and Calculations of all structural members,
• Preparation of shop drawings and BBS,
• QA/QC activities,
• Ensuring the technical reviewer approvals,
• Site construction follow-ups.
